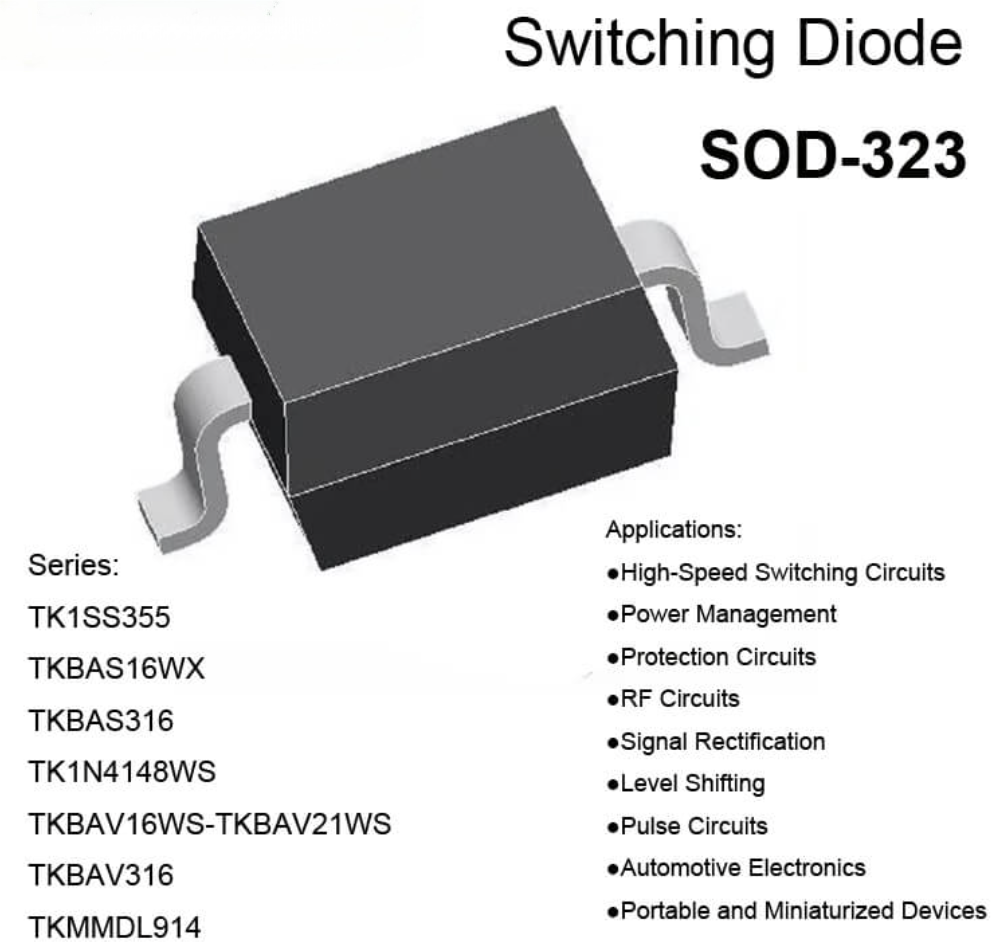

1N4148WS SOD-323 Switching Diode Plastic-Encapsulate Silicon Epitaxial Planar

    Buy cheap 1N4148WS SOD-323 Switching Diode Plastic-Encapsulate Silicon Epitaxial Planar from wholesalers

    Buy cheap 1N4148WS SOD-323 Switching Diode Plastic-Encapsulate Silicon Epitaxial Planar from wholesalers
    • Buy cheap 1N4148WS SOD-323 Switching Diode Plastic-Encapsulate Silicon Epitaxial Planar from wholesalers
    • Buy cheap 1N4148WS SOD-323 Switching Diode Plastic-Encapsulate Silicon Epitaxial Planar from wholesalers

    1N4148WS SOD-323 Switching Diode Plastic-Encapsulate Silicon Epitaxial Planar

    Ask Lasest Price
    Brand Name : Krunter Future
    Model Number : 1N4148WS SOD-323
    Price : Negotiable
    Payment Terms : T/T,MoneyGram
    Supply Ability : Negotiable
    Delivery Time : 20-30days
    • Product Details
    • Company Profile

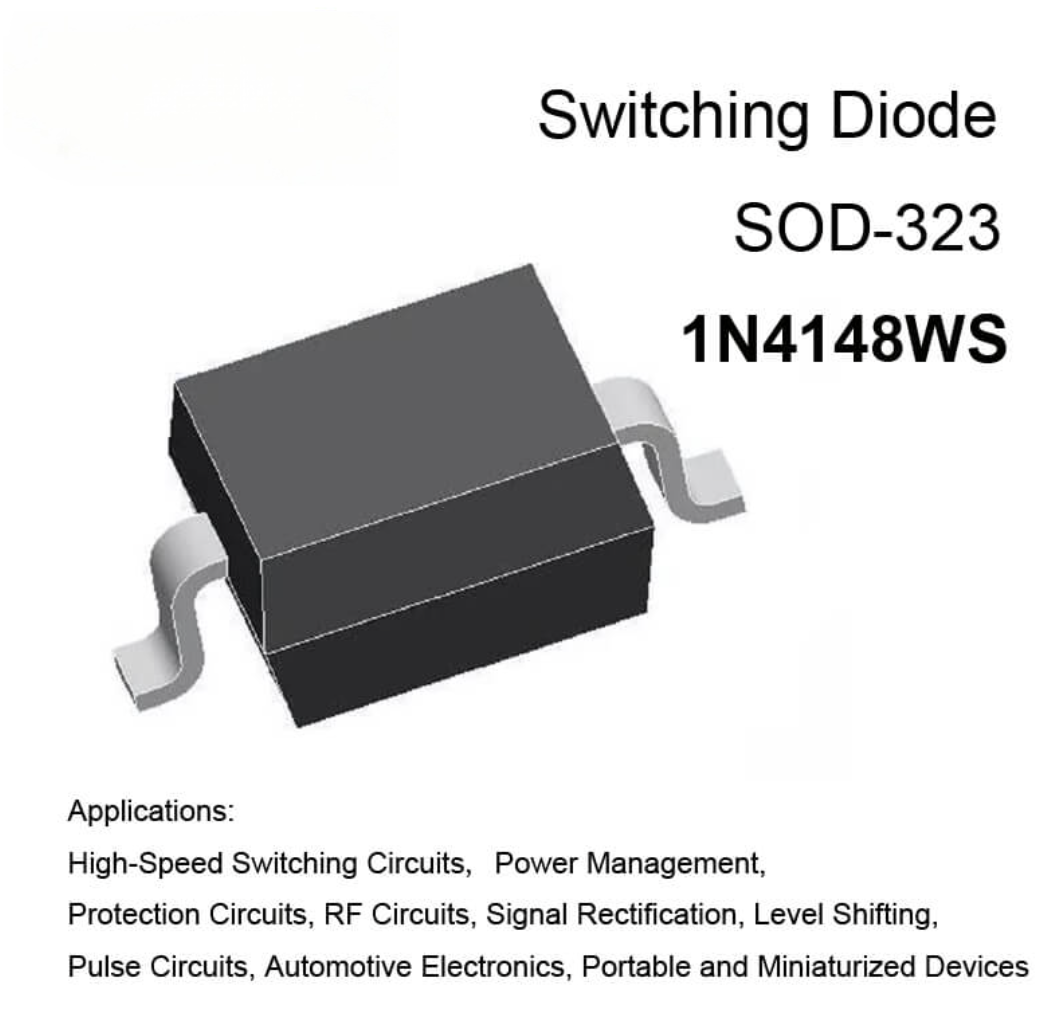

    1N4148WS SOD-323 Switching Diode Plastic-Encapsulate Silicon Epitaxial Planar

    Electrical Characteristics — 1N4148WS

    ParameterValue
    Package OutlineSOD-323
    Minimum Packaging Quantity (MPQ)3000 pcs / reel
    Power Dissipation (Pd)200 mW
    Maximum Repetitive Reverse Voltage (VRM)100 V
    Reverse Voltage (VR)71 V
    Forward Current (IFM)300 mA
    Surge Forward Current IFSM (t = 8.3 ms)2 A

    Key Features

    • Low Reverse Current

    • Surface Mount Package Ideally Suited for Automatic Insertion

    • Fast Switching Speed

    • For General Purpose Switching Applications

    Typical Applications

    • High-Speed Switching Circuits

    • Power Management

    • Protection Circuits

    • RF Circuits, Signal Rectification

    • Level Shifting

    • Pulse Circuits

    • Automotive Electronics

    • Portable and Miniaturized Devices

    Shipping & Support

    Shipping Icon

    Shipping Details

    • Lead Time: 1–2 Weeks

    • Shipping Time: 3–40 working days (As your choice & your country)

    • Item Location: Dongguan, Guangdong, China

    Support Icon

    After-Sales Service

    • Free Samples

    • Warranty: 2 Year

    • 24-Hour Online Service: Solve your product problems and any other issues
